Complete true-diversity premium-level wireless microphone system for soprano saxophone

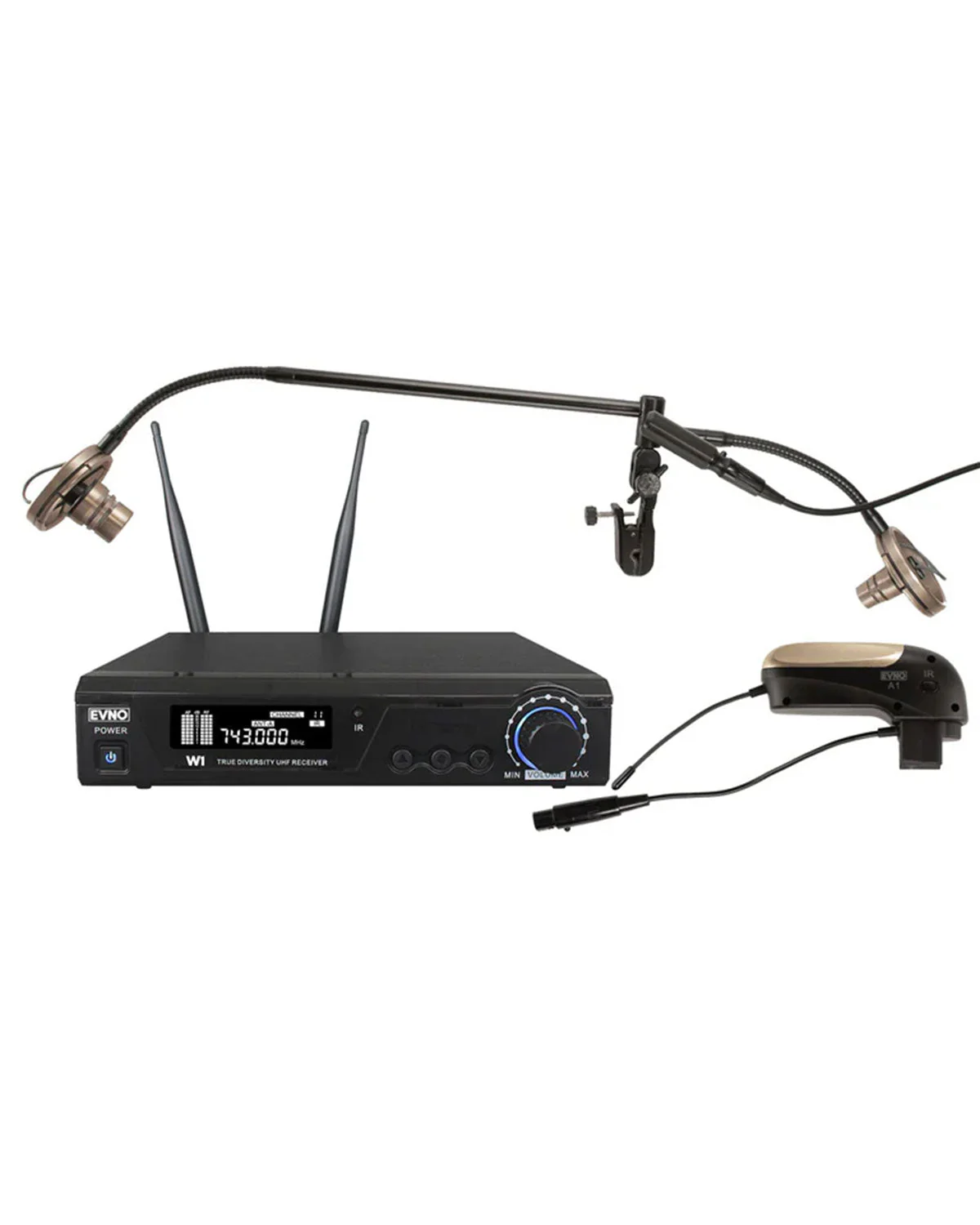

Handcrafted in the USA, the EVNO SPX2-W1 double soprano saxophone microphone system is purpose-built to reveal the full expressive range of the soprano saxophone. Its innovative dual-microphone design ensures every nuance and subtle inflection is captured, offering a remarkably faithful and natural representation of your instrument's voice. With the inclusion of the Evno W1 True Diversity wireless system, the SPX2-W1 package provides uncompromising reliability and flexibility, whether on stage or in the studio.

Engineered specifically for soprano saxophone, the SPX2 features a bell-mounted, twin-element configuration that brings out the instrument’s authentic tonal character. The unique preset mix is intentionally crafted so that the frequencies over the bell are more prominent than those directly from the bell, resulting in a sound that is both natural and vibrant. This sophisticated setup effectively addresses the challenges commonly faced when miking a soprano sax, such as feedback and uneven frequency response.

The system is designed for versatility, making it equally suitable for soloists, principal players, and dynamic horn sections across a wide variety of genres. Thanks to its high gain-before-feedback and resistance to element saturation, the SPX2-W1 excels in both intimate and high-volume environments, delivering detailed sound reproduction without coloration.

Mounting the SPX2 is effortless with the newly designed SXCL clamp, which positions the microphone elements precisely for optimal sound capture. The spring-loaded mechanism and lightweight gooseneck ensure secure yet flexible placement, accommodating finger and key movement without obstructing playability. The clamp is compatible not only with soprano but also with tenor, alto, and baritone saxophones from the Evno lineup, providing adaptability for multi-instrumentalists.

Aesthetically, the SPX2 is as impressive as it is functional, boasting a beautifully machined body with perfect venting to enhance acoustic transparency. Its standard variable 7-point O-ring suspension system allows for quick and easy maintenance, while the 3-pin mini XLR output supports both wired and wireless connections.

At the heart of the wireless experience is the Evno W1, the flagship model in the Evno wireless series. Featuring advanced True Diversity technology, the W1 operates two antennas and two receivers simultaneously, seamlessly combining the strongest signals for up to 150 meters of robust, interference-free coverage. The receiver is housed in a durable metal chassis, offering both XLR and quarter-inch outputs, and is easily rack-mountable with included hardware and extension cables. Quick antenna removal and flexible positioning are made possible by BNC locking connectors.

With 99 selectable channels and swift IR sync capability, the W1 supports the simultaneous use of multiple systems—ideal for ensemble performances. It is fully compatible with other Evno wireless models and transmitters, ensuring future-proof scalability based on your needs.

The comprehensive EVNO SPX2-W1 system includes the SPX2 microphone, SXCL clamp, W1 True Diversity receiver, A1 transmitter, power supply, and rack kit—delivering a complete solution tailored to the demands of professional saxophonists seeking unrivaled sound quality, flexibility, and reliability.

FEATURES

True Diversity Antenna System: Utilizes two antennas and two receivers simultaneously, combining the audio and switching between antennas based on signal strength for enhanced stability and range.
Range: Offers a maximum distance of approximately 150 meters, making it suitable for large venues and stages.
Metal Chassis: Durable and robust design with a 1-XLR and 1-1/4 inch output.
Rack-Mountable: 1/2 rack-mountable design with a rack-kit and extension cables for standard rack unit placement. Antennas can be positioned on the front of the rack case for easy access and removal.

SPECIFICATION

Receiver:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    Receive Sensitivity: -110 dBm (sinad ≥30 dB)
    •    Signal/Noise Ratio: >105 dB
    •    Power Supply: DC 12V / 500 mA
    •    Audio Output: 1-XLR, 1-1/4 inch
    •    Antenna: True Diversity, Detachable

Transmitter:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    RF Power: 10 mW
    •    Microphone Type: Condenser
    •    Directivity: Cardioid
    •    Deviation: ±48 KHz
    •    Antenna: 1/4 wave length wire type
    •    Battery Voltage: 1.5V (1x1.5V AA Battery)
    •    Power Consumption: 14 hours, battery-dependent

System Specifications:
    •    Frequency Range: 823-832 MHz (Europe)
    •    Modulation Mode: FM
    •    Dynamic Range: >100 dB
    •    Frequency Response: 60 Hz - 17 KHz ± 3 dB
    •    Total Harmonic Distortion: <0.5% at 1 KHz
    •    Signal/Noise Ratio: ≥108 dB
    •    Distance: Up to 500 feet / 150 m
